How the System Works ?

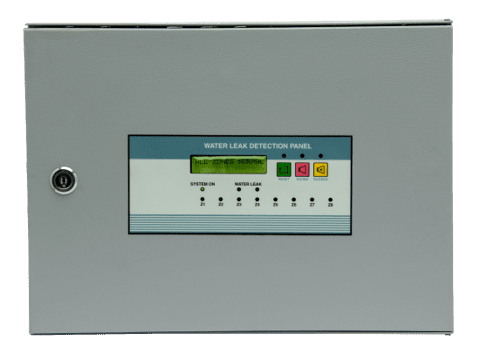

  • ┬áThe water leak detection system consist of a water leak detection panel JAY Je3523, water leak detection cables WD-CS and a external sounder.
  • The water leak cables are laid all over the area.
  • When the cable senses a leak, leak indication is displayed on the panel along with the information of the zone where the event has occurred and the hooter and internal buzzer is activated.
  • Along with it a relay is activated in order to provide a potential free o/p to the BMS.
  •  The water leak detection system consist of a water leak detection panel JAY Je3523, water leak detection cables WD-CS and a external sounder.
  • The water leak cables are laid all over the area.
  • When the cable senses a leak, leak indication is displayed on the panel along with the information of the zone where the event has occurred and the hooter and internal buzzer is activated.
  • Along with it a relay is activated in order to provide a potential free o/p to the BMS.














Features ?


  • LCD display to notify the leak and zone number.
  • Operates zone wise Potential free relay and one common relay in case of Alarm for BMS Integration.
  • Built in audible sounder and common hooter output.
  • Easy to install and operate.
  • Self restoring.┬áThe panel is available for 1 to 8 zones .Can detect leak any where along the entire cable length.
  • ┬á














Specifications


  • ┬áSupply Voltage┬á : 230v AC 50Hz ┬▒ 10%
  • LCD Display┬á : 16×2 Backlit
  • Relay Leak ┬á : SPDT Single Contact NO-C-NC
  • Internal Sounder┬á :Buzzer to indicate leak
  • External Sounder┬á : Hooter 24v DC
  • Fuse┬á : 2 Amp
  • Current consump.┬á : 0.4 Amp
  • Current Consump. Alarm ┬á : 1 Amp
  • Working Temperature┬á : -10 to 50 ┬░ C
  • Construction┬á : Metal Enclosure wall mounted
  • Weight┬á : 5 Kgs ( approx)
  • Size ( H X W X D )┬á : 270x360x115mm
wiring diagram

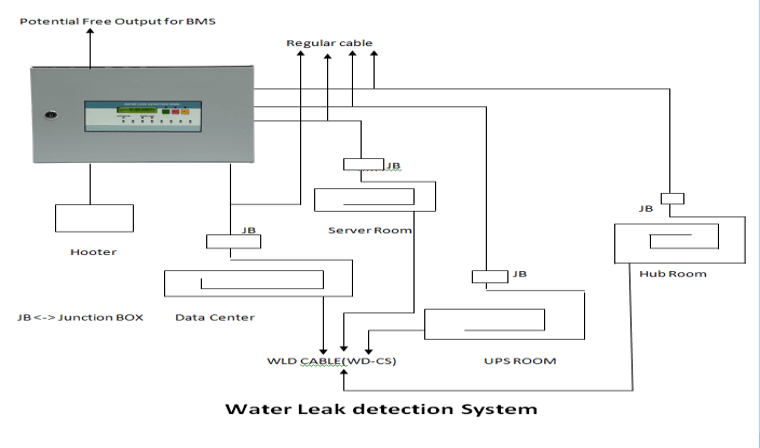

Wiring Diagram
